WHEEL ALIGNMENT 3D, 2 CAMERAS WITH THIN POST AND CAMERA BEAM AT THE FRONT

Wheel Alignment 3D – 2 Cameras with Thin Post & Front Camera Beam

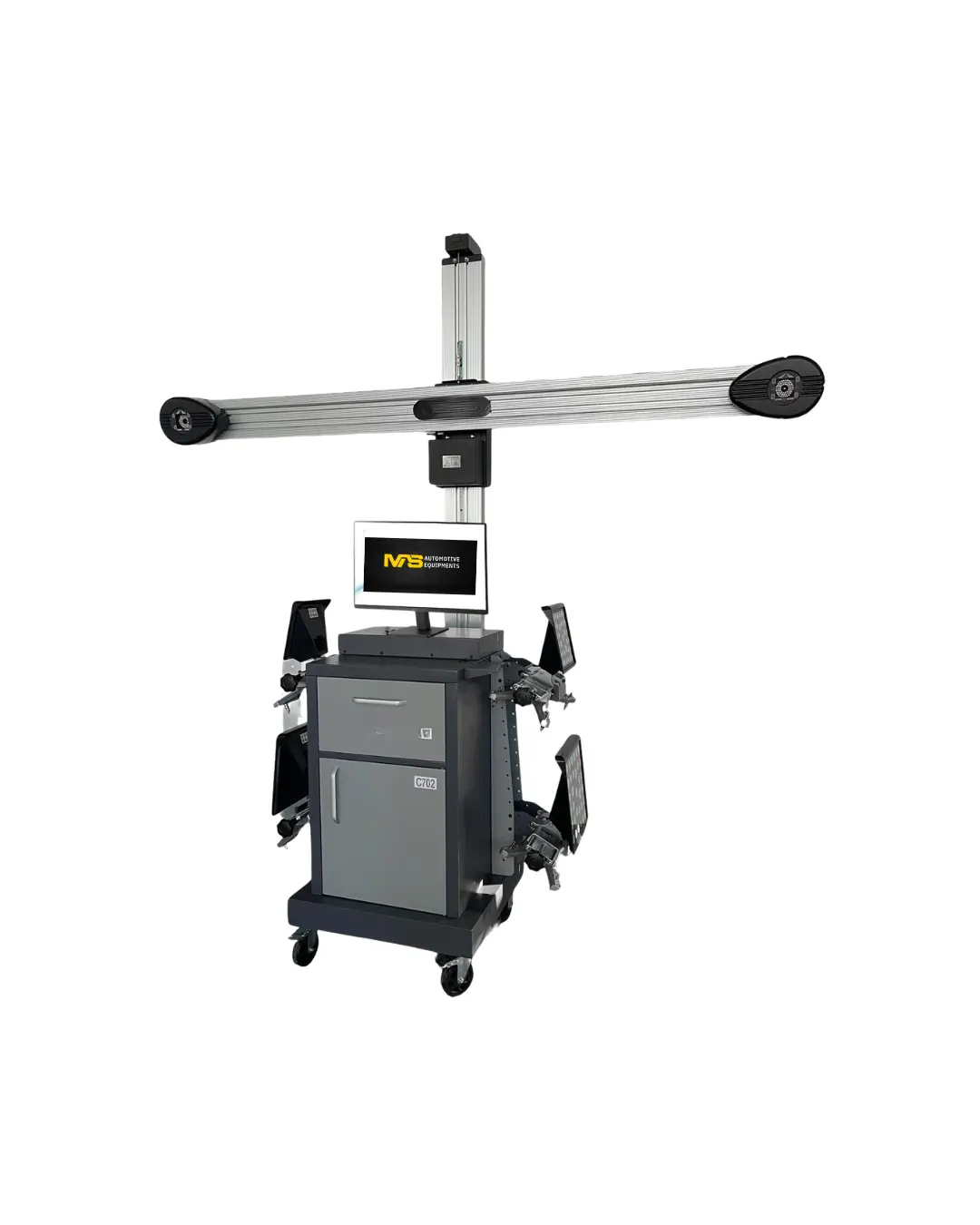

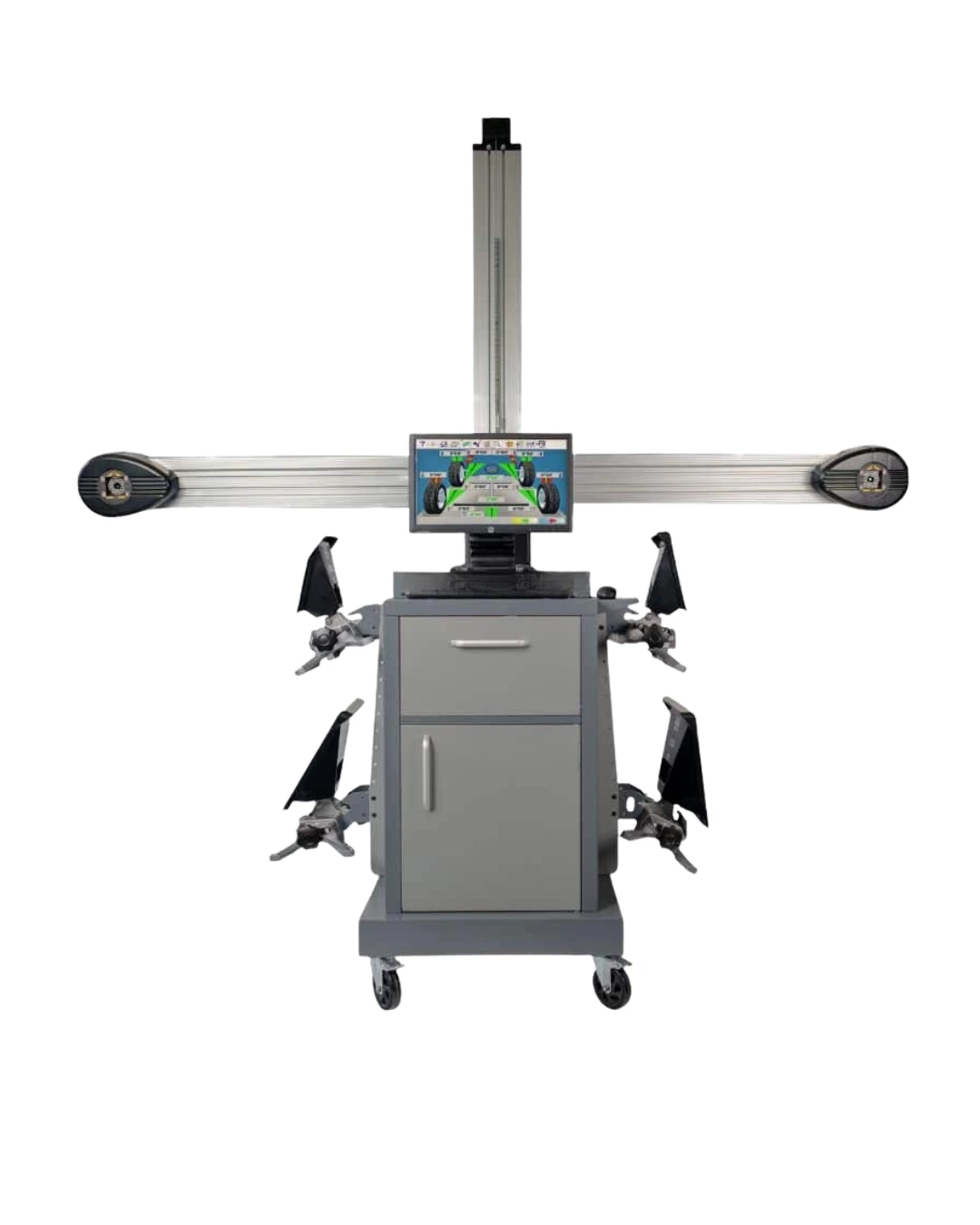

The Wheel Alignment 3D system by MAS Automotive Equipment is a high-precision, stable, and cost-effective wheel alignment solution designed for modern automotive workshops, tire service centers, and vehicle maintenance facilities. Built with advanced 3D camera technology and a front-mounted camera beam, this system delivers fast, accurate, and reliable alignment measurements for improved workshop efficiency and business growth.

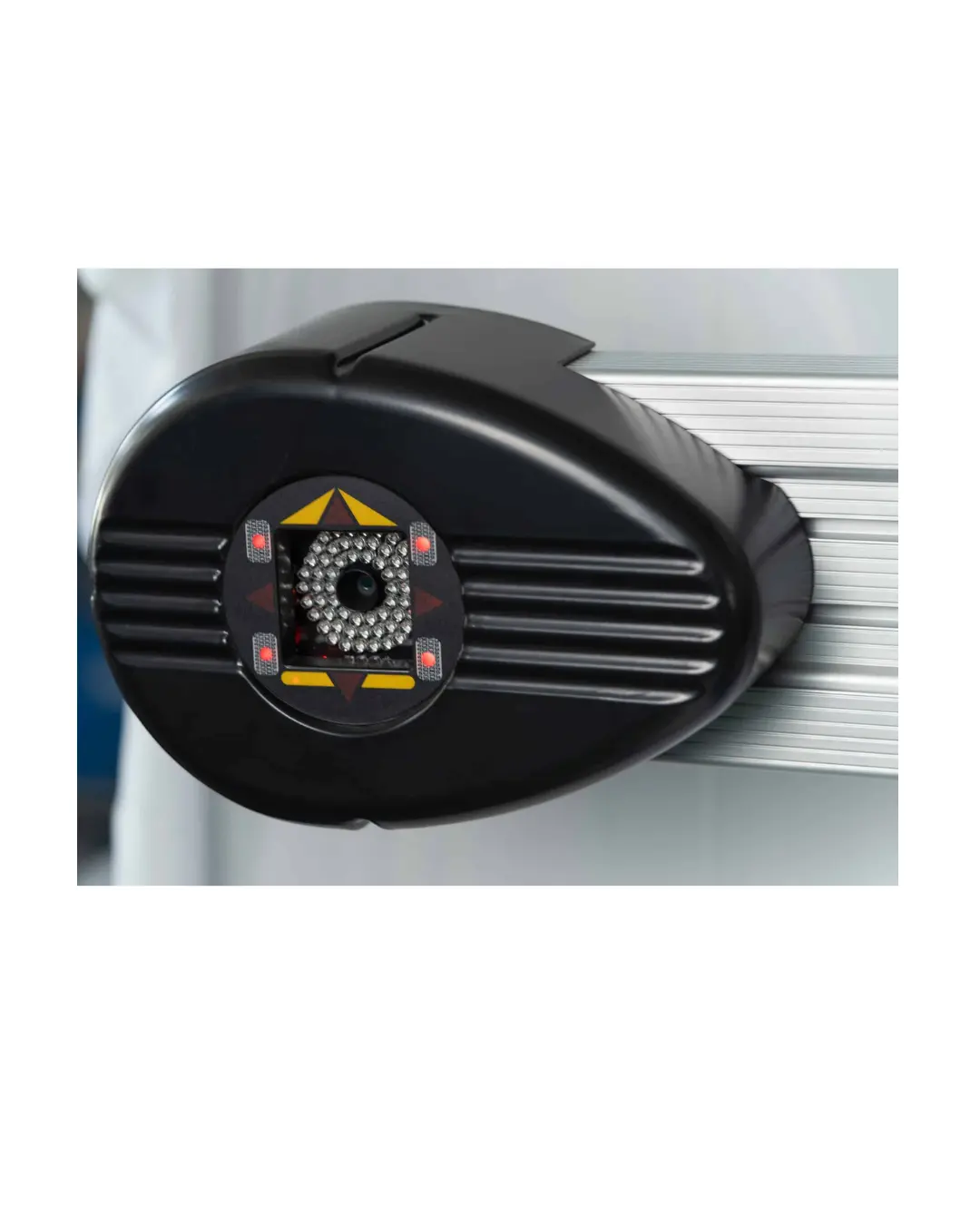

The C702 3D wheel aligner features a user-friendly interface, high-speed measurement processing, and an intelligent diagnostic mode that enables technicians to perform professional alignment operations with minimal effort. Its advanced optical system and dual high-resolution cameras ensure precise detection of wheel geometry, making it suitable for high-volume workshops and professional automotive environments.

Designed for versatility, the system supports electromechanical lift/lower operation, allowing measurement across a wide height range while automatically tracking target positions. Its robust aluminum structure ensures stability, durability, and resistance to temperature deformation.

The software system includes a comprehensive vehicle database with 30 years of coverage, regional updates, and compatibility with modified suspension vehicles. The intelligent interface provides step-by-step guidance, real-time visualization, and automated diagnostic assistance for accurate and efficient alignment work.

With a complete set of professional accessories and fast measurement cycles of approximately 3 minutes, this system significantly reduces workshop time while maintaining high accuracy and repeatability.

Key Features

• Advanced 3D wheel alignment system with dual high-resolution cameras
• Front-mounted camera beam for stable and accurate measurement
• Fast alignment cycle – approximately 3 minutes per vehicle
• Wide vehicle database (30 years coverage) with online updates
• Intelligent expert mode for guided professional alignment
• Real-time visualization of all measurement processes and results
• Supports total toe, camber, caster, kingpin inclination, and more
• Measurement of wheelbase, track width, and steering geometry
• Compatible with modified suspension height vehicles
• Electromechanical lift/lower tracking system (100–1700 mm range)
• Self-centering wheel clamps (11″–22″) with corrosion protection

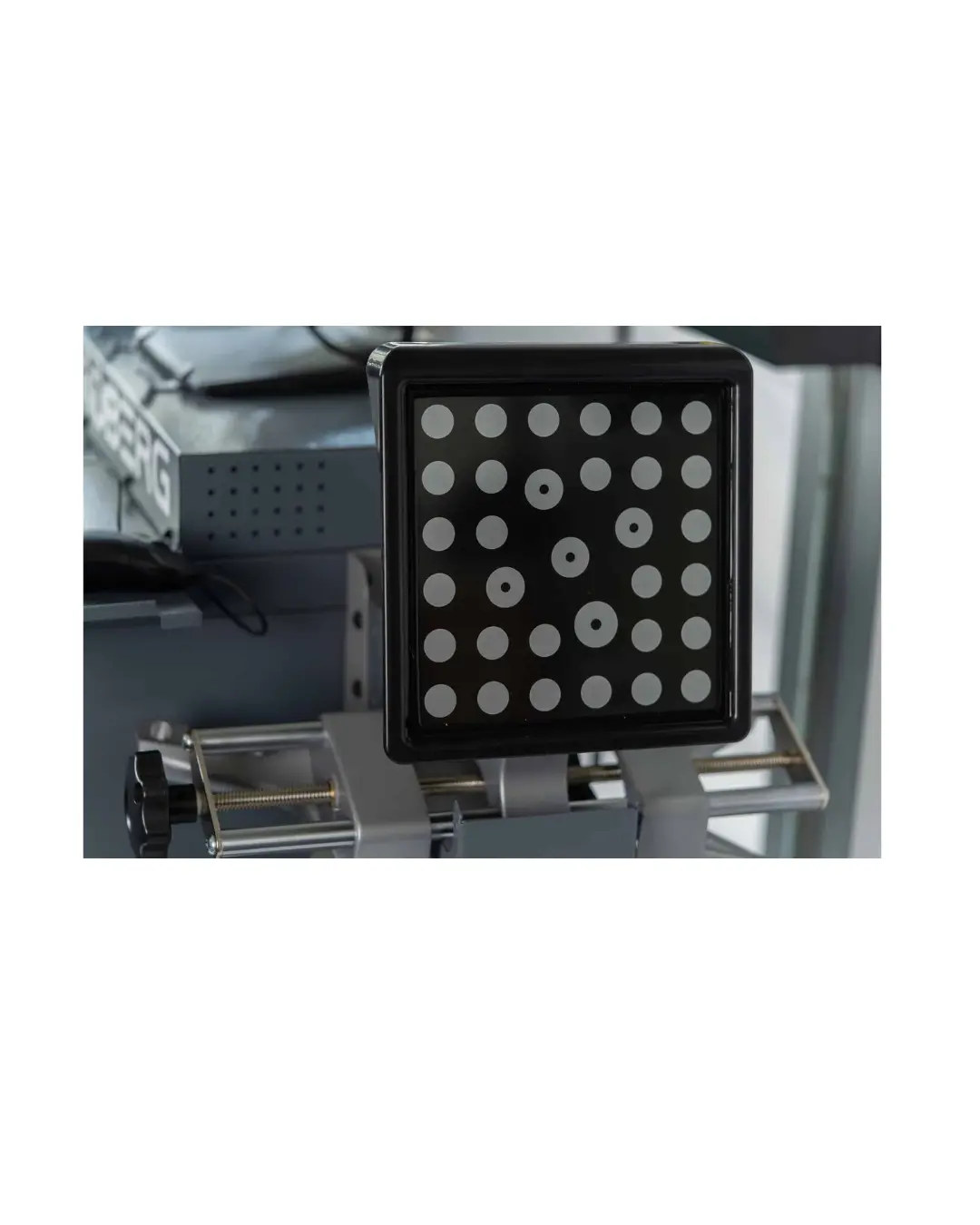

• Wireless impact-resistant targets with stable connectivity
• Windows-based software with intuitive interface and animation guidance
• Integrated vehicle management and calibration history storage
• Bright color indicators and operator assistance system
• Self-diagnostic and adjustment support functions
• High-strength aluminum column and beam structure


  Specification	Item	Accuracy	Range	Total Range
  Front Wheel	Camber	±0.02°	±10°	±10°
  Front Wheel	Caster Angle	±0.05°	±10°	±10°
  Front Wheel	Kingpin Caster Angle	±0.02°	±20°	±20°
  Front Wheel	Toe	±0.02°	±2.4°	±4.8°
  Rear Wheel	Rear Axle Offset	±0.02°	±2°	±4°
  Rear Wheel	Maximum Steering Angle	±0.08°	±25°	±45°
  Rear Wheel	Thrust Angle	±0.02°	±2°	±4°
  Rear Wheel	Track Width Difference	±0.03°	±2°	±8°
  Rear Wheel	Front Set Back	±0.02°	±2°	±4°
  Rear Wheel	Rear Set Back	±0.02°	±2°	±4°
  General	Track Width	±0.64 cm (0.25 in)	<265 cm (105 in)	<265 cm (105 in)
  General	Wheel Base	±0.64 cm (0.25 in)	<533 cm (210 in)	<533 cm (210 in)
